LED Flood Light
Thank you for your attention and favor to LNJAMI. As the leading outdoor LED flood light manufacturer in China, LNJAMI is committed to providing personal and professional outdoor lighting solutions. Meanwhile, we embrace the requirements of customization, offering OEM/ODM customized designs and productions to satisfy your individual lighting needs. We sincerely welcome your shares of project details, and our team will be dedicated to providing satisfying professional solutions.

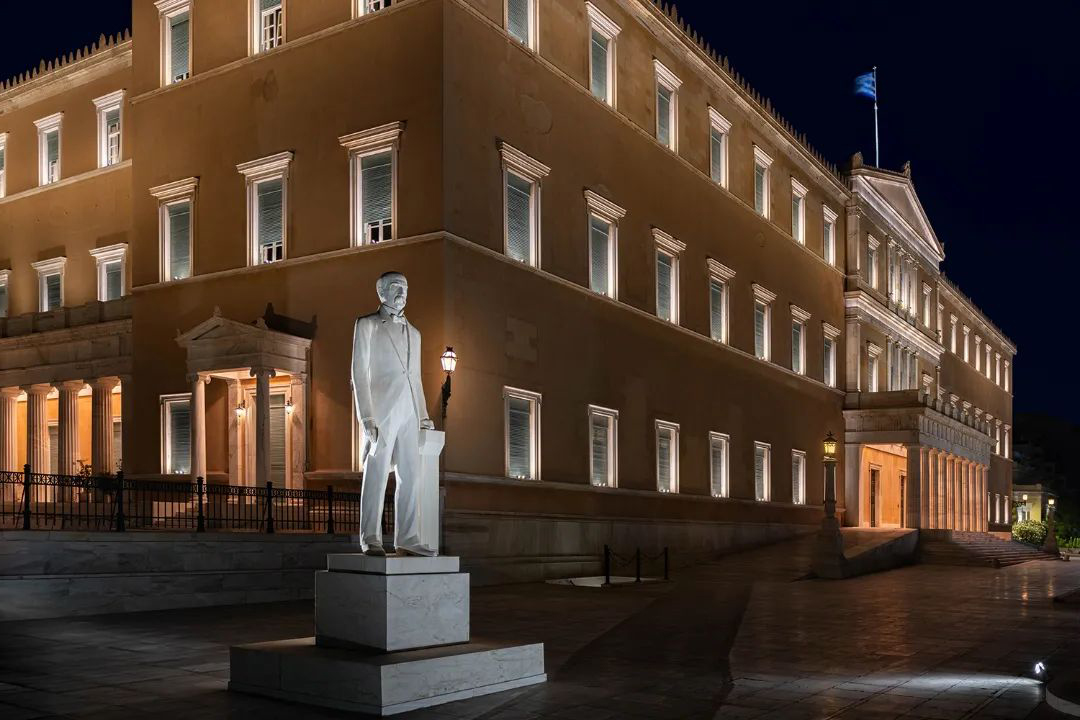

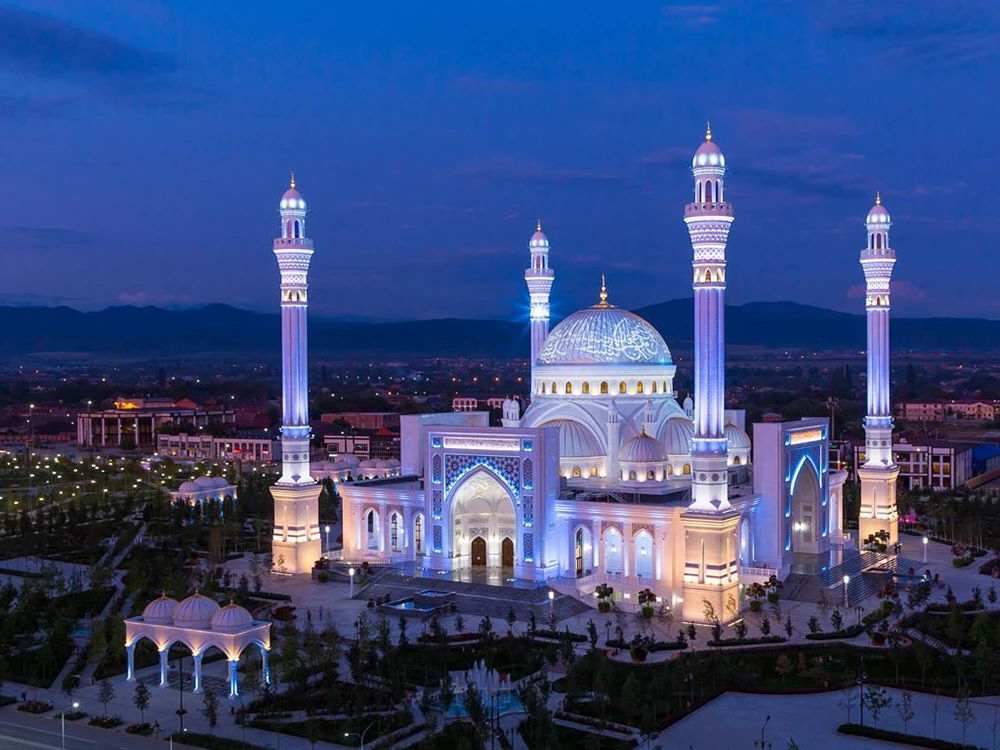

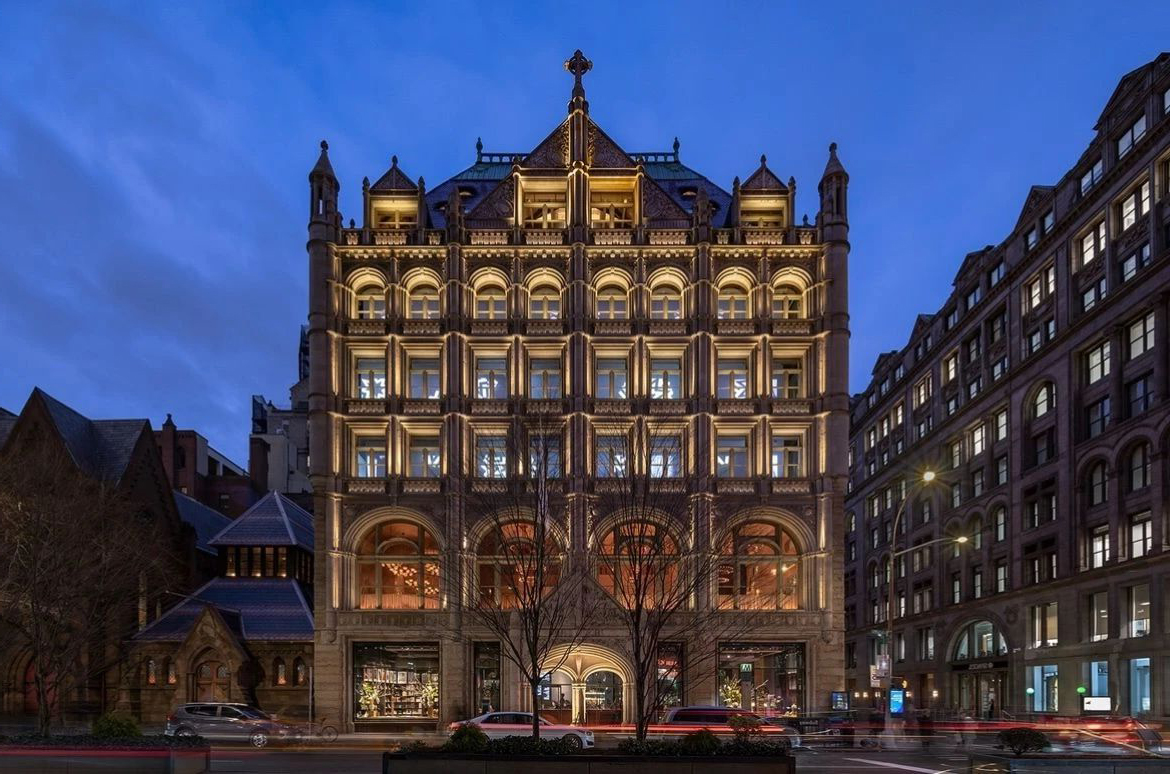

LNJAMI LED Building Flood Light Practical Cases
Top-Tier LED Flood Light Fixtures
LNJAMI LED flood lights will be the best choice when you need durable, average-strong lights for buildings with huge acreages. Our single lamp body is tiny and easy to install but produces broad and stable light beams when combined, which satisfy the requirements for stable brightness on various occasions.
The modular design allows the flood lights to be flexibly combined as needed. Of course, you can also use a single lamp body individually.
The lamp body adopts an electrostatic spraying surface. Adopt professional outdoor spraying to effectively resist corrosion and ensure durability.
The light transmittance of optical-grade lenses is as high as over 90%, which can produce precise and uniform light distribution.
Adopt standard DMX512 agreement and a high grayscale of 65536, accurately reproduces material colors without flickering.
We provide products and lighting design, illumination calculation, and customized services based on meeting your lighting needs fully.
Technical Specifications
| MODEL | POWER | DIMENSION | VOLTAGE | CCT | BEAM ANGLE | IP RATE |
| TGF65 | 8W/12W | L65*W65*H99mm | DC24V/AC100-240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGF80 | 12W/15W | L80*W80*H116mm | DC24V/AC100-240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGF105 | 18W/24W | L105*W105*H154mm | DC24V/AC100-240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGF130 | 24W/36W | L130*W130*H179mm | DC24V/AC100-240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGF160 | 36W/48W | L160*W160*H218mm | AC100-240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGF185 | 48W/72W | L185*W185*H247mm | AC100-240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGF220 | 72W/96W | L220*W220*H291mm | AC100-240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGF220L | 100W/120W | L220*W220*H307mm | AC100-240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGF405 | 120W/150W | L404*W196*H322mm | AC100-240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGF645 | 300W/360W | L643*W215*H301mm | AC100-240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGD65 | 6W/9W | L65*W80*H94mm | DC24V/AC100-240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGD110 | 12W/18W | L110*W119*H153mm | DC24V/AC100-240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGD130 | 24W/36W | L130*W136*H172mm | DC24V/AC100-240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGD160 | 36W/54W | L160*W172*H213mm | AC100-240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGD180 | 60W/72W | L180*W180*H242mm | AC100-240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGD210 | 80W/96W | L210*W223*H273mm | AC100-240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TG150-1A | 18W/30W/36W | L186*W149*H100mm | AC100-240V | 3000K/4000K/5700K/RGBW | 10°/17°/25°/40°/60°/10*22°/12*45°/15*55° | IP66 |
| TG150-2A | 72W | L298*W149*H100mm | AC100-240V | RGBW | 10°/17°/25°/40°/60°/10*22°/12*45°/15*55° | IP66 |
| TG150-4A | 120W | L524*W149*H100mm | AC100-240V | RGBW | 10°/17°/25°/40°/60°/10*22°/12*45°/15*55° | IP66 |
| TG150-4A*2 | 240W | L580*W318*H219mm | AC100-240V | RGBW | 10°/17°/25°/40°/60°/10*22°/12*45°/15*55° | IP66 |
| TG150-4A*3 | 360W | L577*W487*H282mm | AC100-240V | RGBW | 10°/17°/25°/40°/60°/10*22°/12*45°/15*55° | IP66 |
| TG150-5A*3 | 500W | L690*W487*H282mm | AC100-240V | RGBW | 10°/17°/25°/40°/60°/10*22°/12*45°/15*55° | IP66 |
| TG150-1B | 24W/36W | L237*W149*H100mm | AC100-240V | 3000K/4000K/5700K | 15°/ 30°/45°/60°/15*35°/15*45°/15*60° | IP66 |
| TG150-2B | 48W/72W | L402*W149*H100mm | AC100-240V | 3000K/4000K/5700K | 15°/ 30°/45°/60°/15*35°/15*45°/15*60° | IP66 |
| TG150-3B | 120W | L567*W149*H100mm | AC100-240V | 3000K/4000K/5700K | 15°/ 30°/45°/60°/15*35°/15*45°/15*60° | IP66 |
| TG150-3B*2 | 240W | L623*W318*H219mm | AC100-240V | 3000K/4000K/5700K | 15°/ 30°/45°/60°/15*35°/15*45°/15*60° | IP66 |
| TG150-3B*3 | 360W | L623*W487*H282mm | AC100-240V | 3000K/4000K/5700K | 15°/ 30°/45°/60°/15*35°/15*45°/15*60° | IP66 |
| TG150-1C | 24W | L188*W149*H100mm | AC100-240V | 3000K/4000K/5700K/RGBW | 5°/10°/25°/40°/60° | IP66 |
| TG150-2C | 48W | L302*W149*H100mm | AC100-240V | 3000K/4000K/5700K/RGBW | 5°/10°/25°/40°/60° | IP66 |
| TG150-3C | 72W | L416*W149*H100mm | AC100-240V | 3000K/4000K/5700K/RGBW | 5°/10°/25°/40°/60° | IP66 |
| TG150-4C | 100W | L530*W149*H100mm | AC100-240V | 3000K/4000K/5700K/RGBW | 5°/10°/25°/40°/60° | IP66 |
| TG150-4C*2 | 200W | L586*W318*H219mm | AC100-240V | 3000K/4000K/5700K/RGBW | 5°/10°/25°/40°/60° | IP66 |
| TG150-4C*3 | 300W | L586*W487*H282mm | AC100-240V | 3000K/4000K/5700K/RGBW | 5°/10°/25°/40°/60° | IP66 |
| TG150-5C*3 | 400W | L700*W487*H282mm | AC100-240V | 3000K/4000K/5700K/RGBW | 5°/10°/25°/40°/60° | IP66 |
| TGB135 | 24W | L150*W150*H237mm | DC24V/AC100~240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGB155 | 36W | L174*W174*H268mm | DC24V/AC100~240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGB175 | 48W | L196*W196*H278mm | DC24V/AC100~240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGB200 | 60W | L224*W224*H294mm | DC24V/AC100~240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGB220 | 72W | L246*W246*H305mm | DC24V/AC100~240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGB265 | 120W | L297*W297*H339mm | DC24V/AC100~240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGP135 | 24W | L150*W150*H412mm | DC24V/AC100~240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGP155 | 36W | L174*W174*H443mm | DC24V/AC100~240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGP175 | 48W | L196*W196*H453mm | DC24V/AC100~240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGP200 | 60W | L224*W224*H470mm | DC24V/AC100~240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGP220 | 72W | L246*W246*H480mm | DC24V/AC100~240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
| TGP265 | 120W | L297*W297*H514mm | DC24V/AC100~240V | 3000K/4000K/5700K/RGBW | 10°/30°/45°/15*25°/20*45°/10*60° | IP66 |
Special Features
Reliable Modular Design
Modular structure design with strong applicability, freely combined power supplies, which can be used jointly or independently.
Excellent Weather Resistance
AkzoNobel's UV-resistant polyester powder coating is suitable for various substrates and has excellent weather and corrosion resistance.
Anti-Static Electricity Lens
Anti-static electricity and optical level PMMA lens with average high brightness lights.
Efficient Heat Dissipation Design
Die-cast aluminum alloy-made lamp body with low thermal resistance path for heat dissipation.
Adjustable Illumination Angle
Provide 180° vertical rotation for easy adjustment of projection angle.
Waterproof & Easy Installation
Strictly control the spacing between lamps and seamlessly connect the lamp bodies to create perfect lighting effects.
Standard DMX512 Agreement
Standard DMX512 Agreement with a high greyscale of 65536 is met, controlling the change of luminance and color.
Advanced Customization Services
Provide the project design, illumination calculations, and customized product developments.
Installation Type
Outdoor Flood Lighting Applications
LED flood light is a point light source that can illuminate evenly in all directions, and its illumination range can be adjusted arbitrarily. There are many applications for color, wattage, beam angle, size, and style according to different lighting scenario needs.
Marble pillar
Church
Tree and Flower
Bridge
House roof
Stage
Stadium
Street
Why Choose LNJAMI LED Flood Lights?
LNJAMI aims to provide high-quality outdoor LED Flood Lights for architecture. Over the past 15 years, we have helped clients create many successful projects. Each of our lamps is a high-quality lamp with a guaranteed after-sales service. For more projects, please get in touch with us.
Reliable Quality. Each of our lights undergoes rigorous testing to ensure compliance with standards.
Strong Supply Chain. Provide high-quality raw materials and competitive prices to provide quality assurance for our products.
Various customization functions. Provide customized size, wattage, light color, beam angle, voltage, and other functions. As long as you want it, we can do it.
Complete after-sales service. A professional team will handle after-sales service, and professional engineers will help you until the end of our warranty period.
We can design light-up projects as below:
Service Excellence in Outdoor Flood Lighting Solutions
Customization service
We support customer-specific customization, including IP rate, specifications, packaging, etc.
Project rendering design
Own professional outdoor lighting design team to provides project effect design services
After-sales service
Professional engineering team provides installation and commissioning guidance services
Logistics Support
Different routes such as sea, air, land and express are available for customers to choose according to their needs
Frequently Asked Questions
A flood light is called "flood" because it is designed to provide a broad and powerful beam of light that can cover a large area, much like a flood of water.
Yes, We do offer product and package customizations from design to production, and can come out with an perfect suggestion according to clients' design.
