Equipped with a scientific waterproof design to IP67 rating.
Lamp body undergoes an electrostatic spray coating surface treatment. Using professional-grade powder formulated specifically for outdoor use, delivering exceptional corrosion resistance.
Equipped with an optical-grade PMMA lens with a high light transmittance rating of ≥90%, ensuring accurate beam patterns and uniform illumination.
Constructed from high-quality 6063 aluminum alloy, providing superior heat dissipation capabilities, and offering an exceptionally long service life of 5 years.
Leveraging the standard DMX512 protocol with up to 65,536 grayscale levels, the light accurately reproduces material colors without any flickering.
MODEL | POWER | DIMENSION | VOLTAGE | CCT | BEAM ANGLE | IP RATE |
XQ26F | 12W/15W | L1000*W26*H59mm | DC24V | 3000K/4000K/5700K/RGB/RGBW | 30°/45°/20*40° | IP66 |
XQ28 | 24W | L1000*W28*H41mm | DC24V | 3000K/4000K/5700K/RGBW | 20°/30°/45°/20*40° | IP66 |
XQ35 | 24W/30W/36W | L1000*W35*H48mm | DC24V | 3000K/4000K/5700K/RGBW | 15°/30°/45°/60°/15*25°/10*60°/15*35° | IP66 |
XQ40 | 36W/48W | L1000*W40*H68mm | DC24V/AC110~240V | 3000K/4000K/5700K/RGB/RGBW | 15°/30°/55°/60°/15*25°/10*60°/15*35°/15*60° | IP66 |
XQ40A | 36W/48W | L1000*W40*H96mm | DC24V/AC110~240V | 3000K/4000K/5700K/RGBW | 15°/30°/45°/60°/15*25°/10*60°/15*35° | IP66 |
XQ45 | 36W/48W | L1000*W45*H68mm | DC24V/AC110~240V | 3000K/4000K/5700K/RGB/RGBW | 15°/30°/45°/60°/15*25°/10*60°/15*35° | IP66 |
XQ50 | 72W | L1000*W50*H80mm | DC24V/AC110~240V | 3000K/4000K/5700K/RGBW | 15°/30°/45°/60°/15*25°/10*60°/15*35° | IP66 |
XQ56 | 48W/72W | L1000*W56*H86mm | DC24V/AC110~240V | 3000K/4000K/5700K/RGB/RGBW | 15°/30°/45°/60°/15*25°/10*60°/15*35° | IP66 |
XQ63 | 84W/96W | L1000*W63*H109mm | DC24V/AC110~240V | 3000K/4000K/5700K/RGBW | 15°/30°/45°/60°/15*25°/10*60°/15*35° | IP66 |
XQ80 | 120W | L1000*W80*H107mm | DC24V/AC110~240V | 3000K/4000K/5700K/RGBW | 15°/30°/5+12° | IP66 |

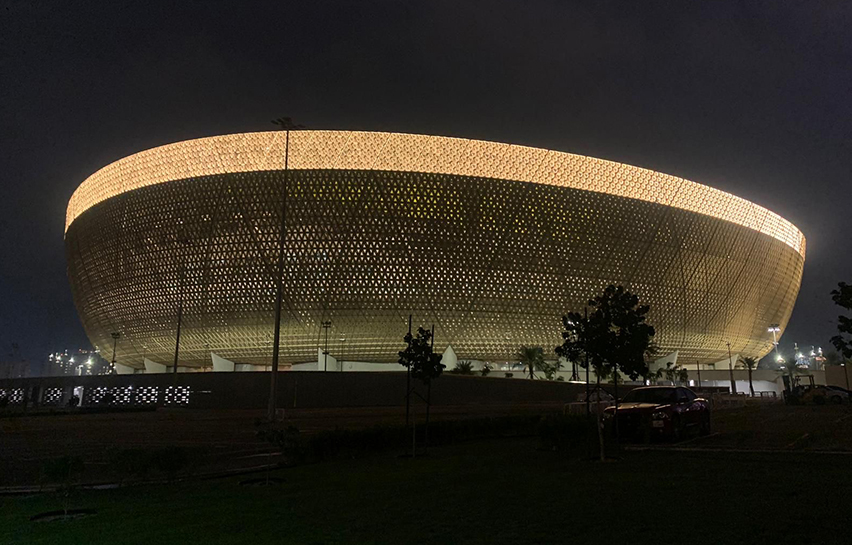

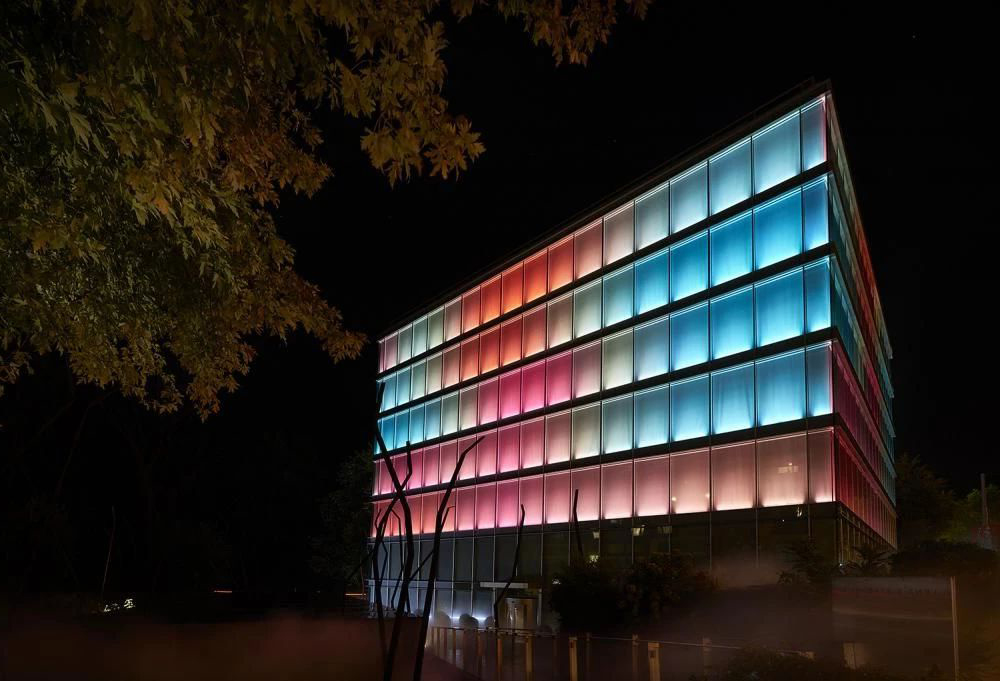

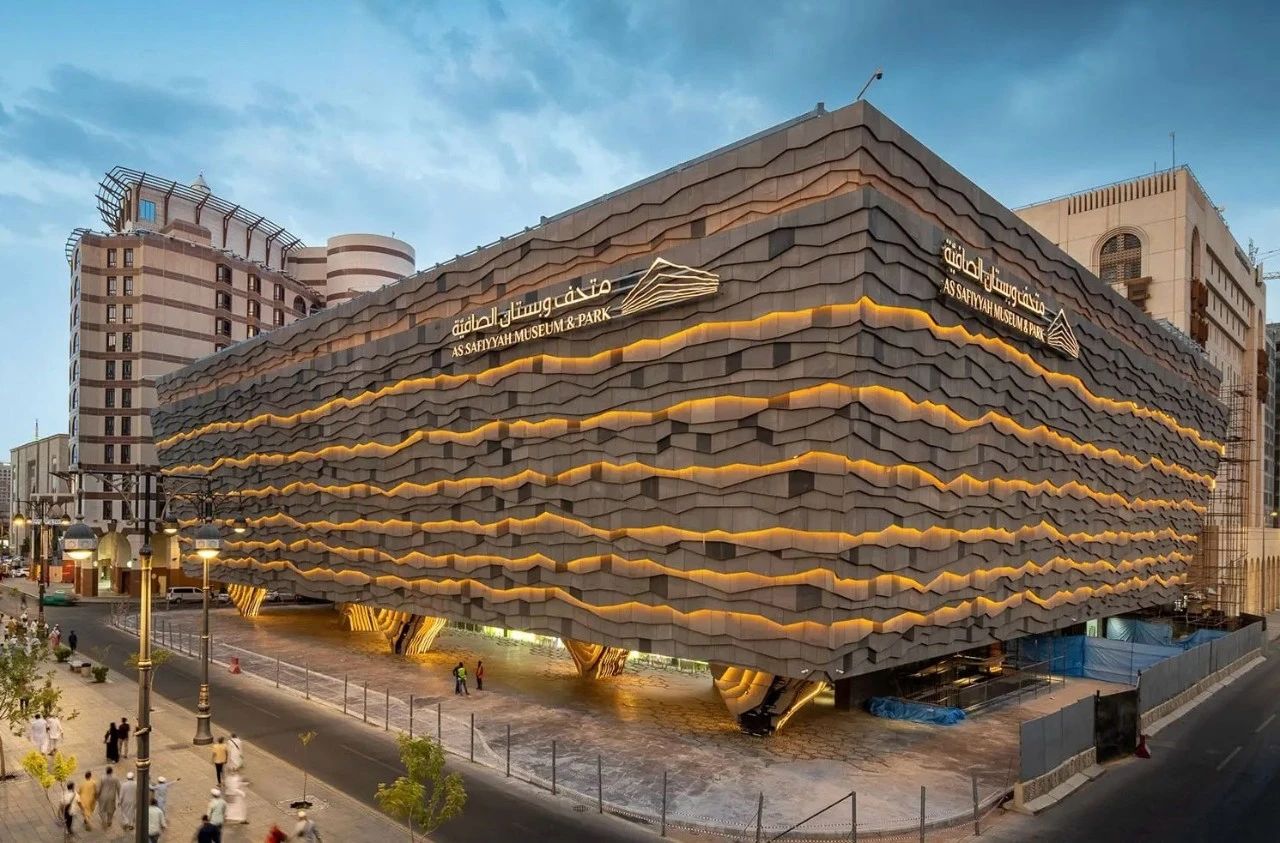

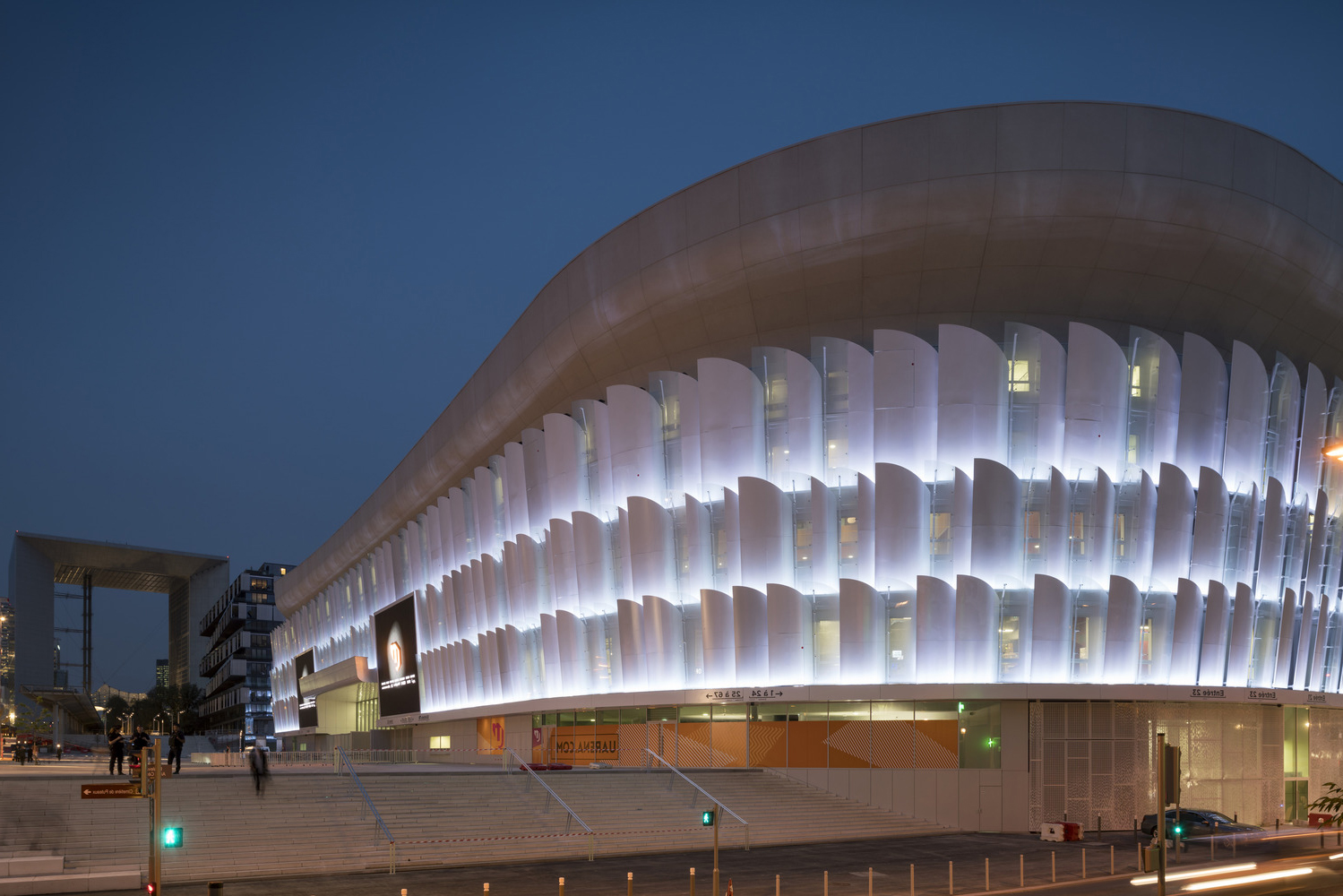

Building Facade
Bridge
River Bank
Municipal Park
Commercial Plaza
Hotel
Outdoor Landscape
Ancient Building

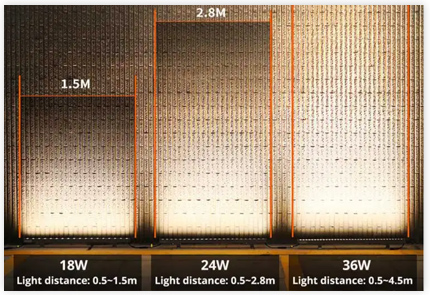

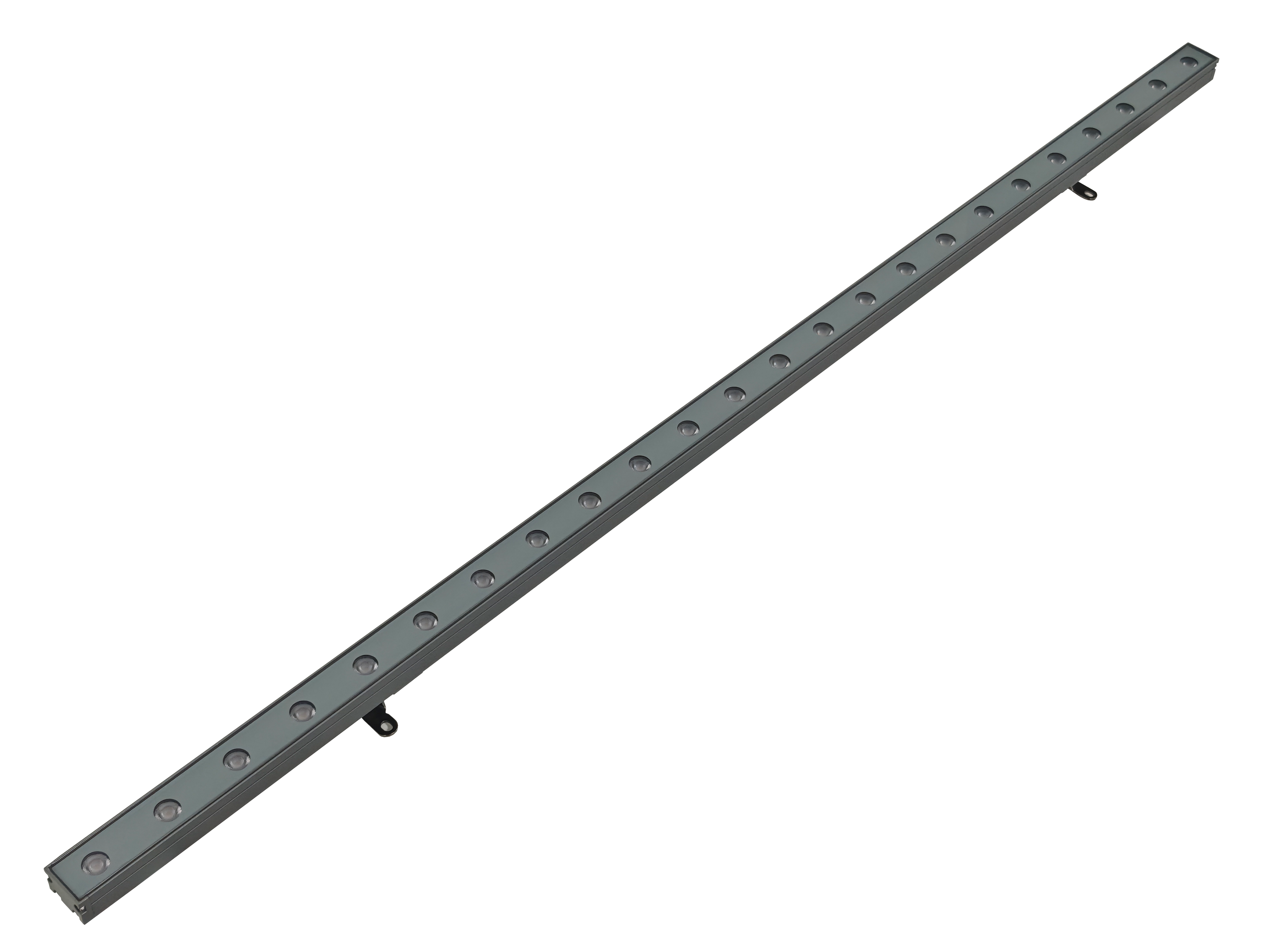

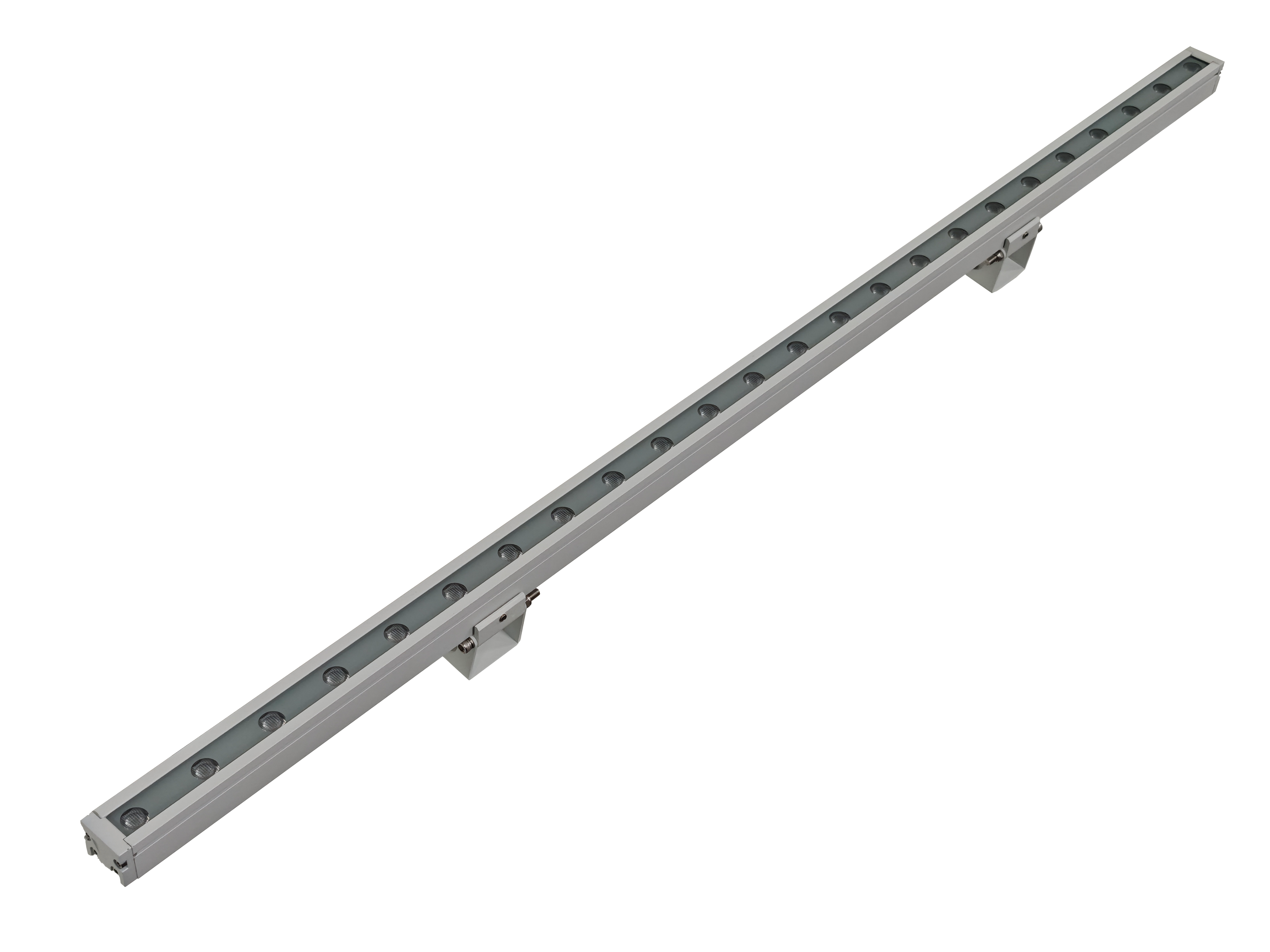

A wall washer light is an architectural lighting fixture designed to illuminate the wall or an area of the wall. A wall washing effect is achieved by mounting lights on the bottom so that the beam of light projects on the wall at a wide angle.
The lead time is 3-5 working days for a sample and 10-15 for mass production. The sample is available to check quality.
