LED Guide Panel Light
LED light guide plate is a device used to optimize the distribution of LED light sources and improve light utilization. It is typically made of transparent or translucent materials with a special surface structure to alter and guide the light emitted by the LEDs. The LED light quide plate is employed to enhance the light distribution of illumination devices, ensuring that the light is uniformly spread across the illuminated area, thereby reducing shadows and spots.
LNJAMI Outdoor LED Guide Panel Light Practical Cases
Outdoor LED Guide Panel Lights for Building Facade
LNJAMI offers a comprehensive selection of ultra-thin and high-uniformity light guide plates, designed for both standard single-layer and multi-layer optical configurations. These precision-engineered LGPs deliver exceptional light diffusion with ultra-low power consumption, ideal for edge-lit backlighting, architectural illumination, and high-end display systems.
The lamp body is made of high-conductivity 6063 new material and imported PMMA material, featuring uniform and soft light distribution, durable for outdoor use, UV resistant, and integrated adhesive filling technology with a waterproof rating of IP68.
Equipped with high-precision constant current driver ICs, the LEDs have excellent luminous efficiency, uniform color, and a viewing angle exceeding 120 degrees.
Uses high-quality, high-brightness SMD 5050 LEDs with a working voltage of DC12V/24V. The power supply and pixel count can be customized to meet different customer needs.
All specifications and dimensions can be customized, and you can also choose polygonal light guides.
Supports DMX512/SPI control or single-color operation, with easy installation that ensures a clean and aesthetically pleasing surface. It can meet the diverse requirements of customers for different occasions.
Technical Specifications
| MODEL | POWER | DIMENSION | VOLTAGE | CCT | BEAM ANGLE | IP RATE |
| DG600W48D2 | 12W/M | L1*L2*H20mm | DC24V | 3000K/4000K/5700K | 120° | IP66 |
| DG600F48D2 | 15W/M | L1*L2*H20mm | DC24V | RGBW | 120° | IP66 |
| DG430F24D2 | 7W | L=430mm | DC24V | RGB | 120° | IP66 |
| DG580F36D2 | 12W | L=580mm | DC24V | RGB | 120° | IP66 |
| DG730F42D2 | 15W | L=730mm | DC24V | RGB | 120° | IP66 |
| DG880F54D2 | 18W | L=880mm | DC24V | RGB | 120° | IP66 |
Unique Features
Dotting very uniform
Dotting and V-cutting can be customized, the size of the dotting also can be customized,and the size of the lines also can be customized according to client demands.
Good flame retardancy
The material of acrylic is made of with excellent flame retardant properties,which can ensure the quality of the light bar itself and the hazards of external fire.
Size & Shape Can be customized
We use advanced and high-precision laser cutting machines, for the size and shape can be customized according to customer needs.
Cuttable
The acrylic can be cuttable as your demands.
Uniform & not dazzling
This light bar has a delicate light, no spot, soft light, not dazzling and not hurting the eyes, it can display high-quality lighting effects.
RGBW & DMX512 control
We can use the strips are generally made of RGB & RGBW and DMX512.We can provide you with edited programs. We can also customize the product and color temperature according to your needs and the on-site lighting effects you want.
Waterproof
The waterproof grade reaches IP66, which can be completely dustproof and resistant to high-pressure water guns. It can be used in places with heavy rain, high dust and need for washing.
Easy to install
It adopts male and female connectors for connection, and is controlled by the main control and sub-controller, which is easy to install.
Installation Type
LED Guide Panel Light Application
Our light guide plates (LGPs) are precision-engineered to seamlessly integrate with your optical systems, transforming scattered light into flawlessly uniform illumination. Crafted from high-transparency, weather-resistant materials (PMMA/PC), LGPs maintain exceptional durability and stability, resisting yellowing, humidity, and temperature fluctuations for consistent performance in both indoor and harsh outdoor environments. With ultra-thin profiles and edge-lit efficiency, they enable vivid, energy-saving displays while eliminating hotspots and glare. This makes light guide plates the ultimate solution for applications demanding precision, aesthetics, and reliability.
Building Facade

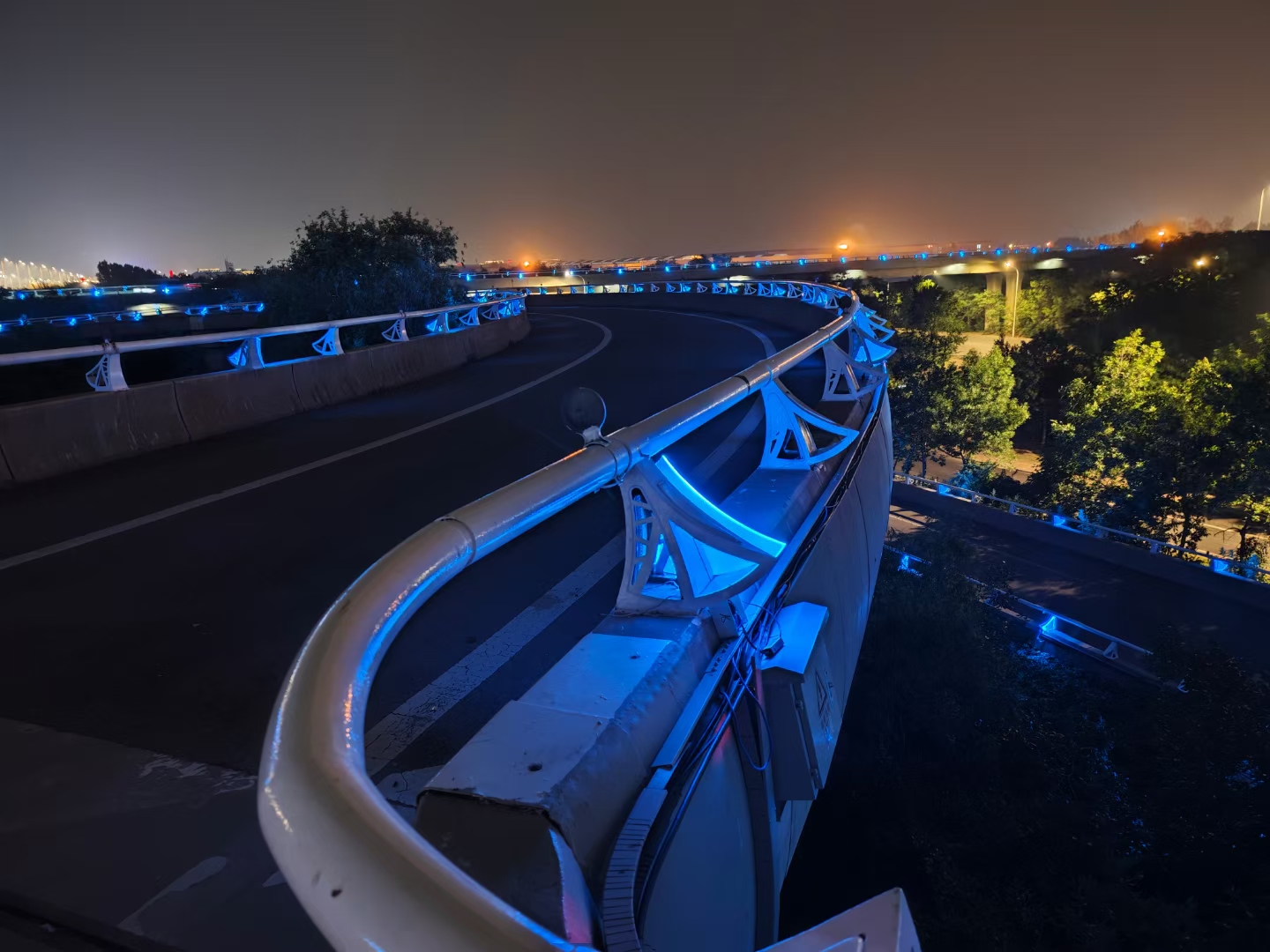

Bridge
River Bank
Municipal Park
Commercial Plaza
Hotel
Outdoor Landscape
Ancient Building
We can design light-up projects as below:
