LED Wall Washer
“Let the light wash over the walls like water.” LED wall washer lights are ideal for architectural lighting, providing a softer effect than spotlights. They beautifully illuminate buildings, bridges, and landscapes, making them perfect for outdoor applications. LNJAMI is a leading outdoor LED wall washer manufacturer in China, is dedicated to providing excellent wall washers to meet various outdoor lighting needs.

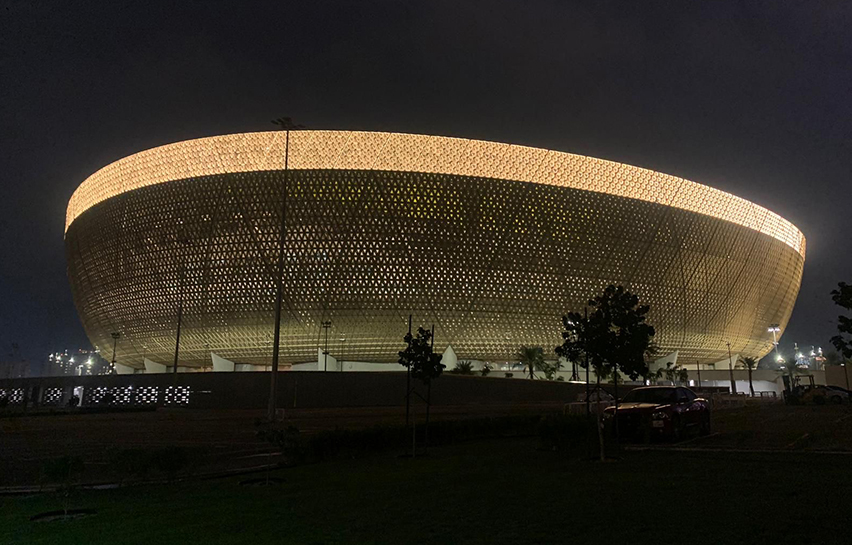

LNJAMI Outdoor LED Wall Washer Practical Cases

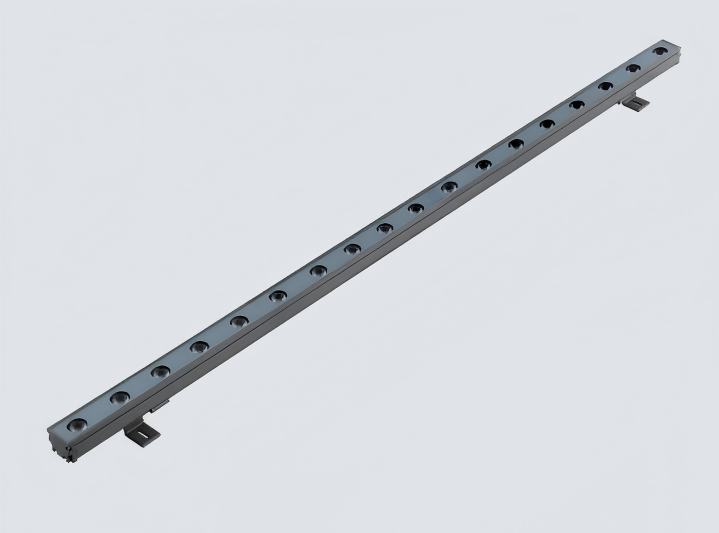

Outdoor LED Wall Washer Lights for Building Facade
LNJAMI provides a range of durable and high-performance outdoor surface-mounted, single-color options. DMX RGB/RGBW color-changing LED wall washers with high lumen output and low power consumption.
Equipped with a scientific waterproof design to IP67 rating.
Lamp body undergoes an electrostatic spray coating surface treatment. Using professional-grade powder formulated specifically for outdoor use, delivering exceptional corrosion resistance.
Equipped with an optical-grade PMMA lens with a high light transmittance rating of ≥90%, ensuring accurate beam patterns and uniform illumination.
Constructed from high-quality 6063 aluminum alloy, providing superior heat dissipation capabilities, and offering an exceptionally long service life of 5 years.
Leveraging the standard DMX512 protocol with up to 65,536 grayscale levels, the light accurately reproduces material colors without any flickering.
Technical Specifications
| MODEL | POWER | DIMENSION | VOLTAGE | CCT | BEAM ANGLE | IP RATE |

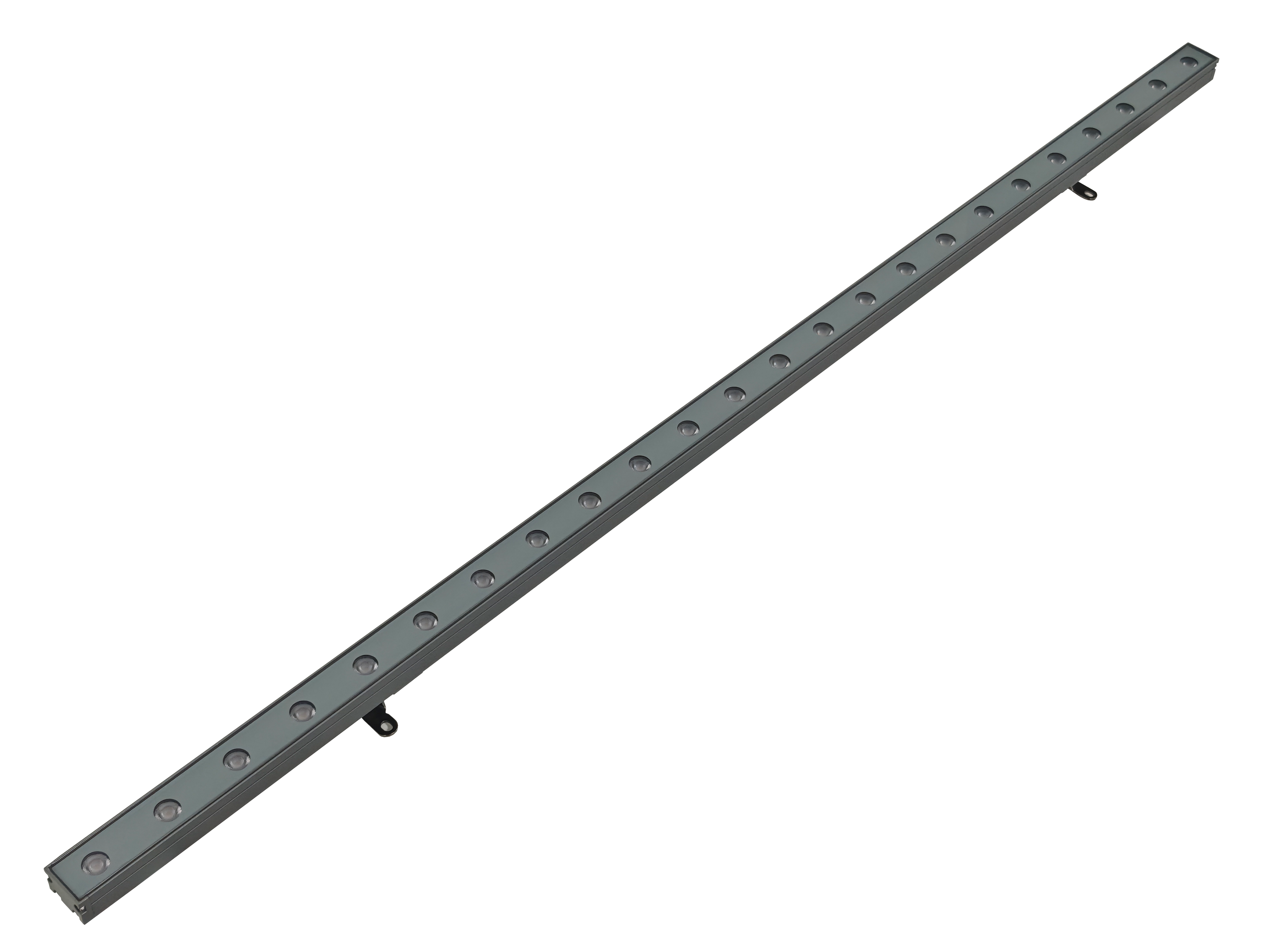

| XQ26F | 12W/15W | L1000*W26*H59mm | DC24V | 3000K/4000K/5700K/RGB/RGBW | 30°/45°/20*40° | IP66 |

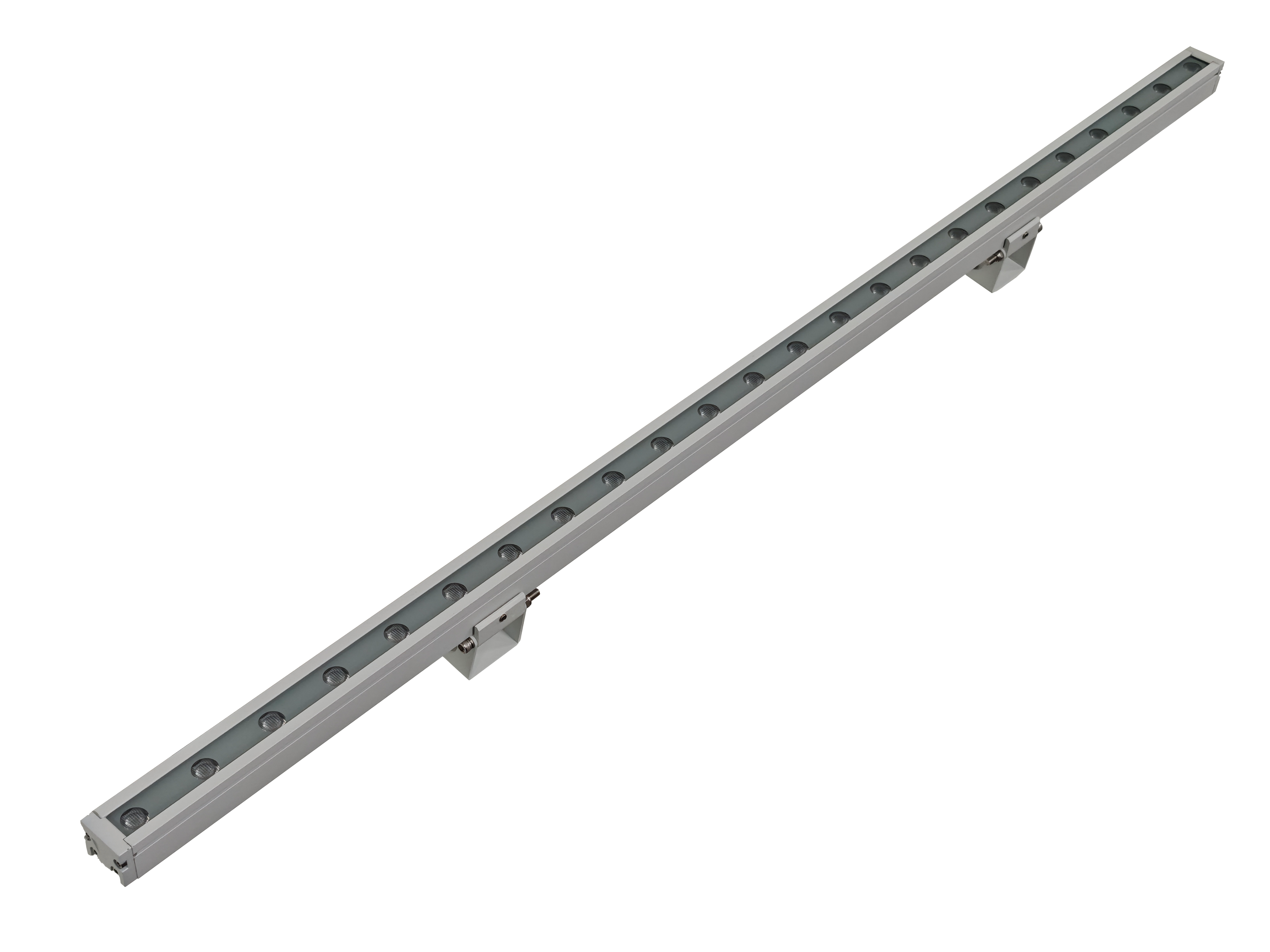

| XQ28 | 24W | L1000*W28*H41mm | DC24V | 3000K/4000K/5700K/RGBW | 20°/30°/45°/20*40° | IP66 |
| XQ35 | 24W/30W/36W | L1000*W35*H48mm | DC24V | 3000K/4000K/5700K/RGBW | 15°/30°/45°/60°/15*25°/10*60°/15*35° | IP66 |
| XQ40 | 36W/48W | L1000*W40*H68mm | DC24V/AC110~240V | 3000K/4000K/5700K/RGB/RGBW | 15°/30°/55°/60°/15*25°/10*60°/15*35°/15*60° | IP66 |
| XQ40A | 36W/48W | L1000*W40*H96mm | DC24V/AC110~240V | 3000K/4000K/5700K/RGBW | 15°/30°/45°/60°/15*25°/10*60°/15*35° | IP66 |
| XQ45 | 36W/48W | L1000*W45*H68mm | DC24V/AC110~240V | 3000K/4000K/5700K/RGB/RGBW | 15°/30°/45°/60°/15*25°/10*60°/15*35° | IP66 |
| XQ50 | 72W | L1000*W50*H80mm | DC24V/AC110~240V | 3000K/4000K/5700K/RGBW | 15°/30°/45°/60°/15*25°/10*60°/15*35° | IP66 |
| XQ56 | 48W/72W | L1000*W56*H86mm | DC24V/AC110~240V | 3000K/4000K/5700K/RGB/RGBW | 15°/30°/45°/60°/15*25°/10*60°/15*35° | IP66 |
| XQ63 | 84W/96W | L1000*W63*H109mm | DC24V/AC110~240V | 3000K/4000K/5700K/RGBW | 15°/30°/45°/60°/15*25°/10*60°/15*35° | IP66 |
| XQ80 | 120W | L1000*W80*H107mm | DC24V/AC110~240V | 3000K/4000K/5700K/RGBW | 15°/30°/5+12° | IP66 |
Unique Features
Dual IP67 Waterproof Design
Fearless of rain with a robust IP67 protection rating.
Superior Corrosion Resistance
Akzo Nobel UV-resistant polyester coating resists corrosion.
Anti-static Optical Lens
Uniform and bright light with an anti-static PMMA lens.
Durable 304 Stainless Steel Materials
High-quality stainless steel with a locking rotary bracket.
Piston-Type Quick Connect Waterproof Joint
Super waterproof connectors for easy, secure installation.
Ultra-High Thermal Conductive LED Aluminum Material
6063 aluminum ensures efficient heat dissipation for 50,000 hours.
Standard DMX512 Protocol
Standard DMX512 protocol returns the material color changes with a high grayscale of 65,536.
One Stop Custom LED Wall Washer Solution
We provide project design, illumination calculation, and customized product development.

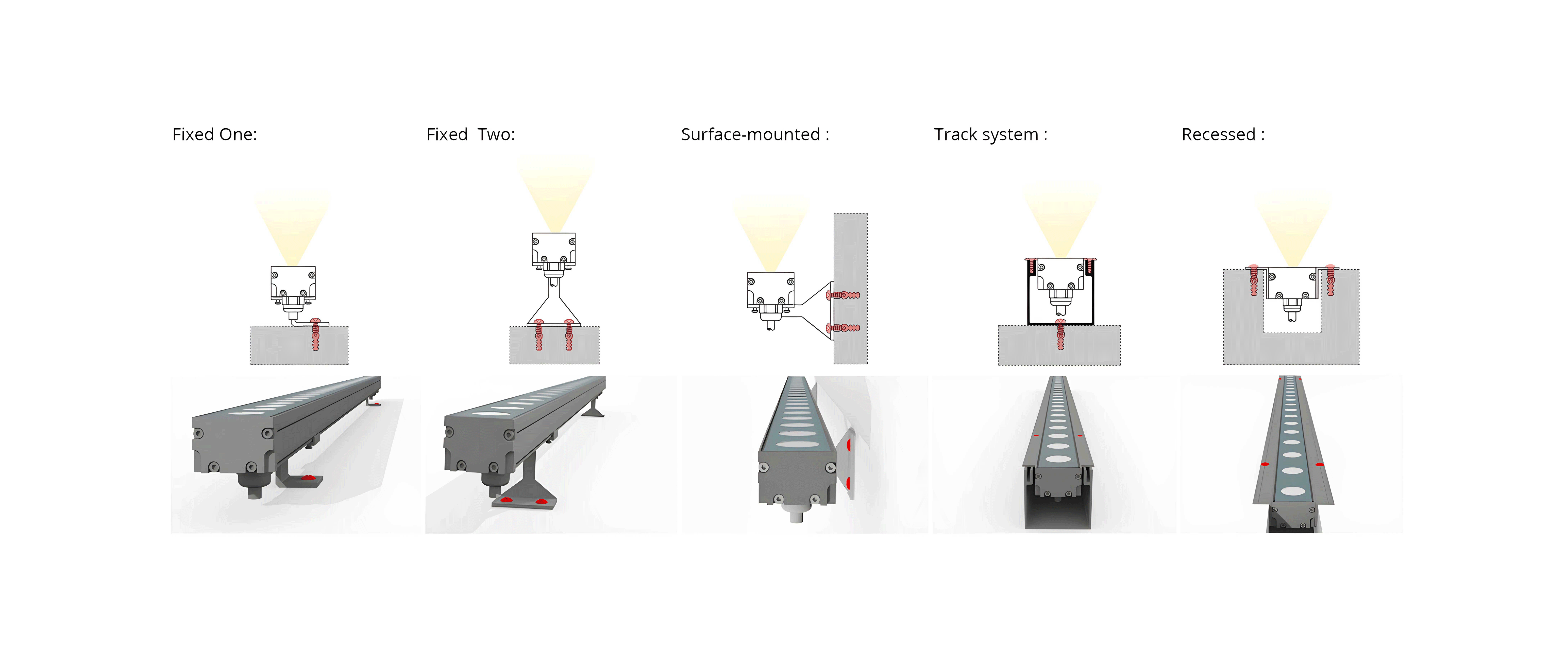

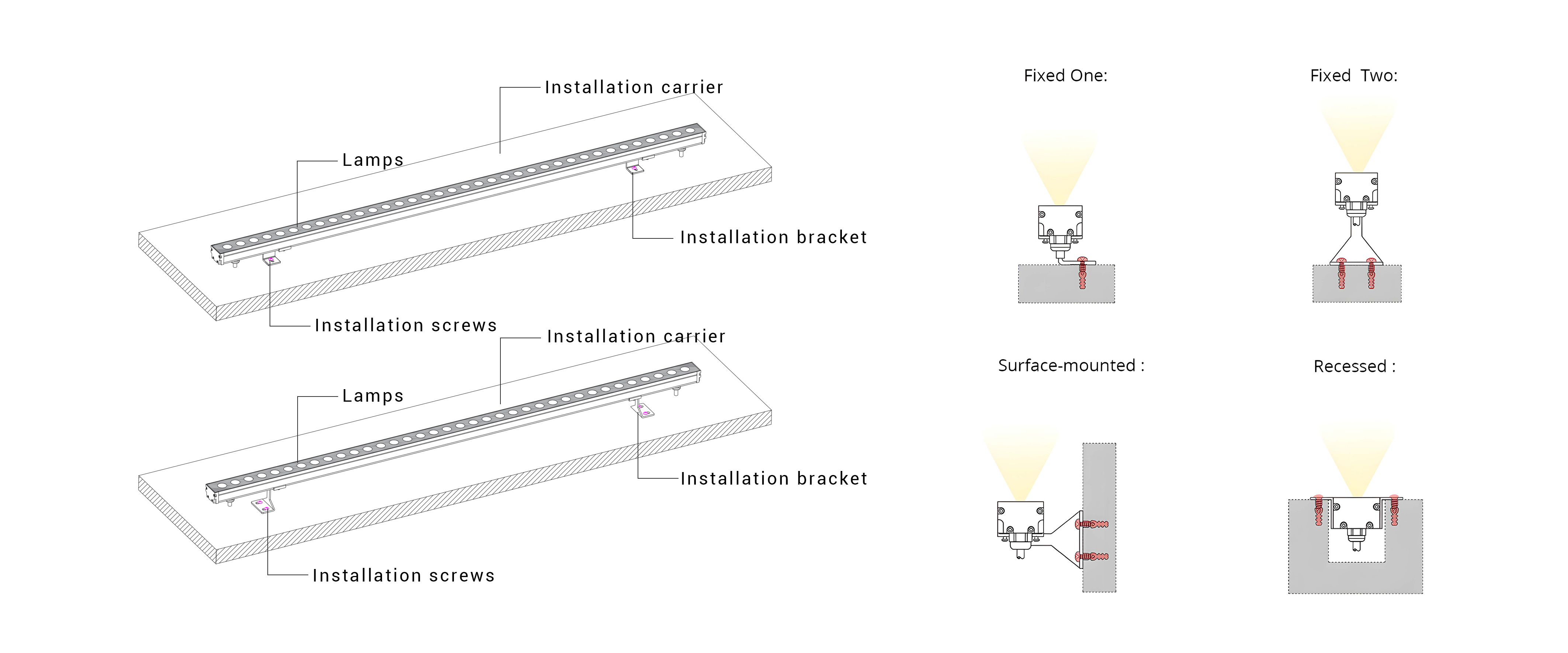

Installation Type
LED Wall Washer Application
Our LED wall washers are engineered to be compatible with the facade of your outdoor building, adding unique visual flair and enhancing nighttime ambiance. The construction of the LED wall washer is durable and stale to withstand all weather conditions to provide excellent outdoor illumination. This makes LED wall washers the perfect solution for outdoor lighting applications.

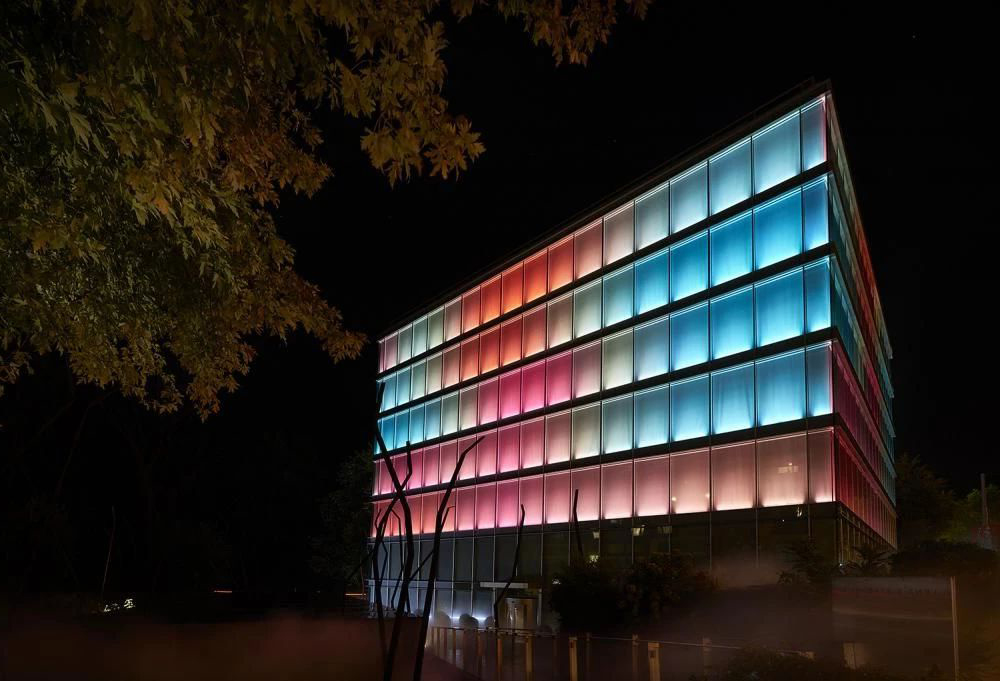

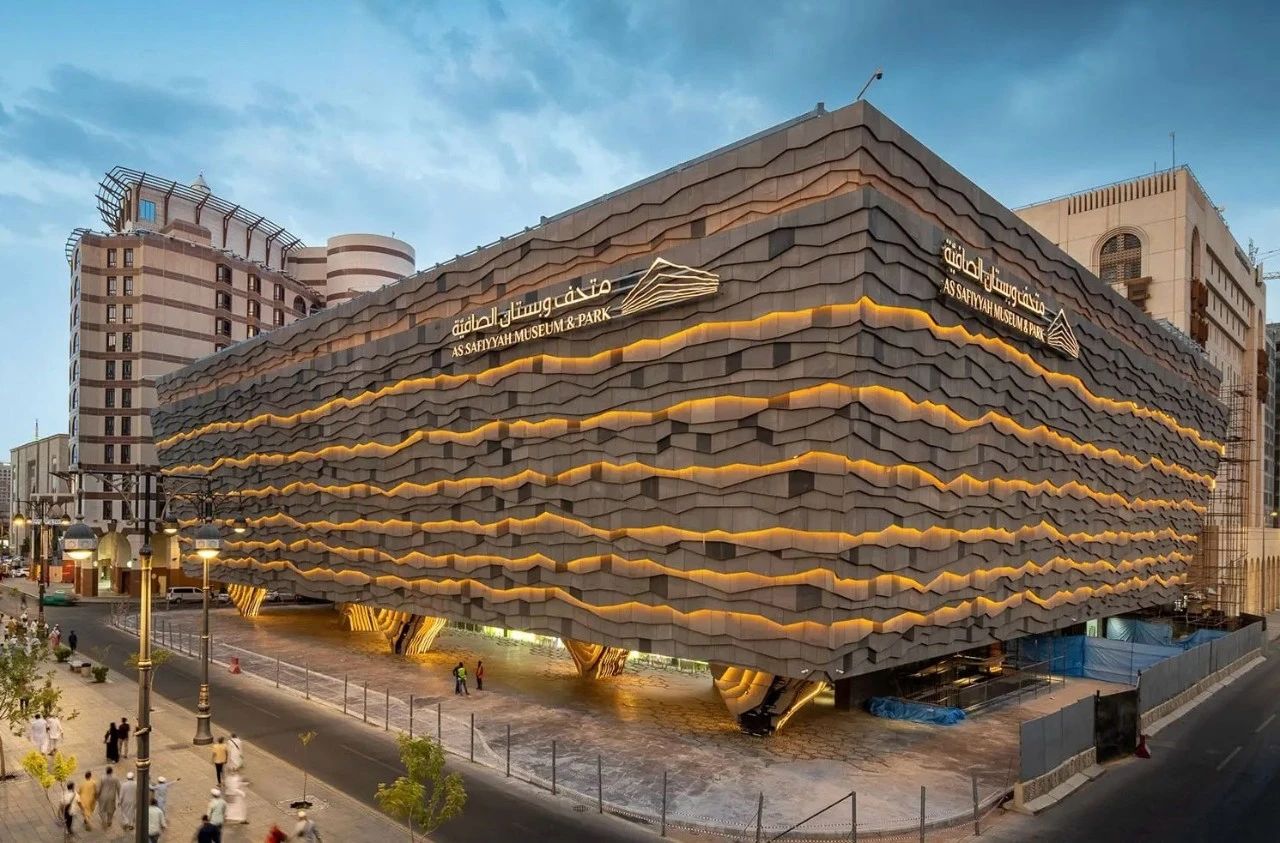

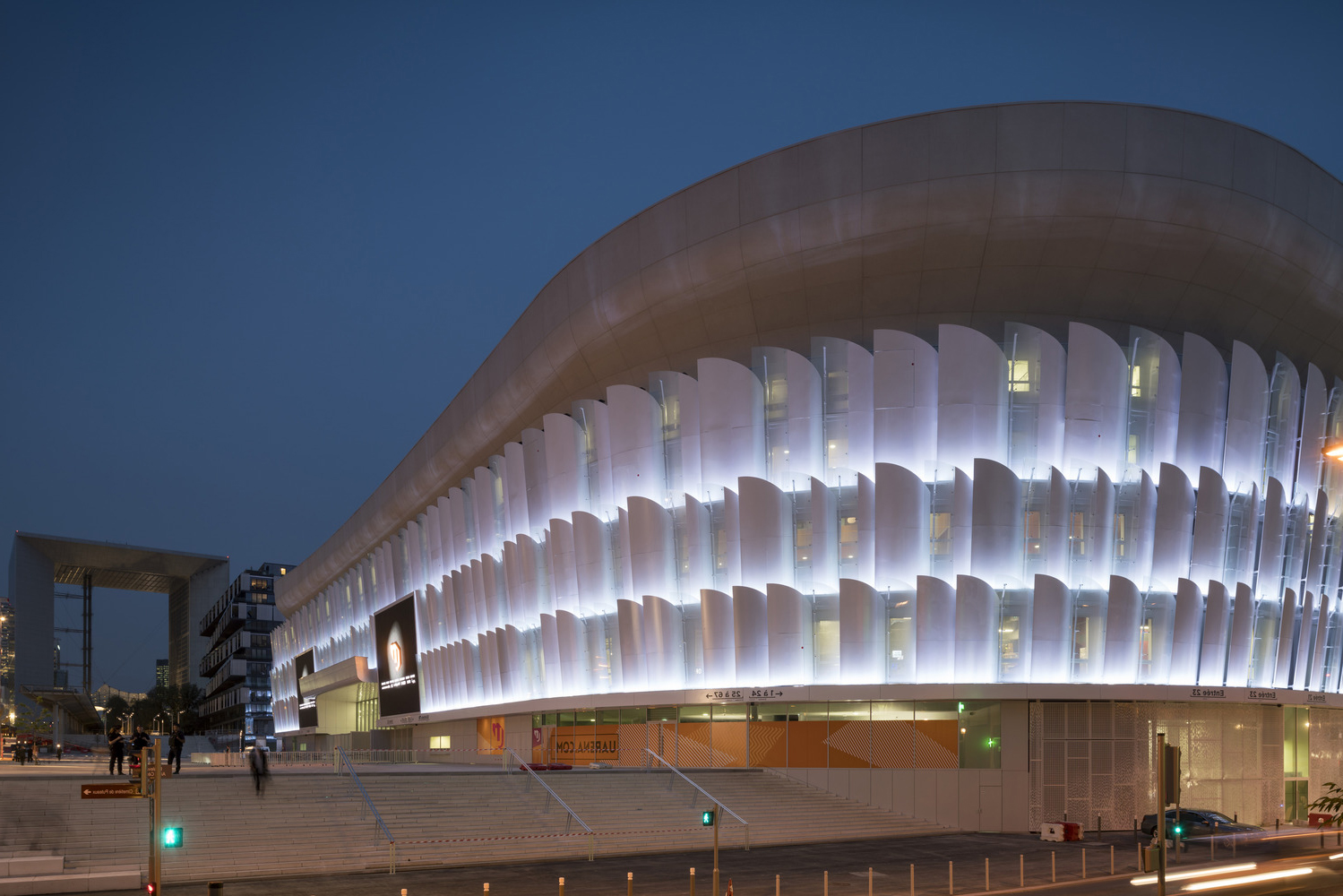

Building Facade
Bridge
River Bank
Municipal Park
Commercial Plaza
Hotel
Outdoor Landscape
Ancient Building
We can design light-up projects as below:
Why Choose LNJAMI?
LNJAMI is known as one of the most professional LED wall washer manufacturers in China. It steeps in a decade-plus of LED expertise. We offer services from design to delivery of critical solutions for wall washers.
R&D Capability: We consistently incorporate innovative ideas and conduct thorough research, enabling us to adapt to market needs and provide exceptional solutions.
Customization Capability: Each parameter—size, wattage, light color, and beam angle—is tailored to meet the client's specific requirements.
Cost-effective and Low MOQ: Our commitment to delivering reliable, cost-effective products extends across various quantity requirements.
Robust Supply Chain Advantage: Leveraging our excellent cooperative relationships with raw material suppliers, we offer competitive pricing and stringent quality assurance.
Service Excellence in Exterior Wall Washer Lighting Solutions
Lighting Design
LNJAMI injects passion and innovation into every product, constantly enhancing our lighting designs to deliver personalized specifications, effects, and ambiance that cater to unique lighting needs.
Lighting Proposal
Choose from our extensive range of lighting designs or collaborate with us to create fully customized plans. LNJAMI ensures exceptional support to guarantee that your lighting solution is visually striking and unforgettable.
Logistics Support
At LNJAMI, we are committed to providing smooth logistics support for your requirements. We are versed in product handling and on-time delivery. We are dedicated to staying within budget to ensure your project stays on track.
Installation Support
Our seasoned engineers provide professional assistance throughout the process. They are available whenever installation guidance is needed. Your satisfaction is not just our goal; it is our guarantee.
Frequently Asked Questions
A wall washer light is an architectural lighting fixture designed to illuminate the wall or an area of the wall. A wall washing effect is achieved by mounting lights on the bottom so that the beam of light projects on the wall at a wide angle.
The lead time is 3-5 working days for a sample and 10-15 for mass production. The sample is available to check quality.
