How Are The Wall Washer Lights Connected and Installed?
Wall washer lights have revolutionized the world by turning plain walls into beautiful canvases of light. Many places nowadays appreciate unique architectural designs for their walls, whether inside or outside. You've come to the perfect place if you want to add a touch of gentle illumination to your walls as well. This post will show you how to install these lights properly!
You will explore the complexities of connecting and installing these radiant lighting. So, get along and read how these lights add creativity to the walls and how their installation becomes an art form.
1. What Is A Wall Washer Light
Firstly, you should know about wall washer lights. So, let’s have a quick brief! A wall washer light is used to alter the places silently with its radiance. It is a multipurpose lighting fixture that intends to enhance the appearance of walls indoors and outdoors. With its use, anyone can add a gentle and even radiant glow.
In contrast to standard overhead lights, these can be carefully positioned to wash the whole wall with light. The users can see these lights in different forms:
1.1) Recessed
1.2) Surface-mounted
1.3) Track-mounted
The availability of several alternatives offers installation flexibility dependent on the individual design needs of a space. Moreover, these are becoming popular for homes, galleries, museums, and commercial locations. Its main reason is its primary function to disperse light evenly across a vertical surface, emphasizing textures, artwork, or architectural details. It is essential for creating a balanced and attractive setting.
2. How To Properly Install Wall-Washing Light Fixtures
The installation of the wall wash lighting needs attention to detail. You should follow the proper steps by deciding on an appropriate place for lights on the wall. Ensure the nearby power source and cut off the power to the selected region. Choose the screws and anchors that are suitable for your wall type.

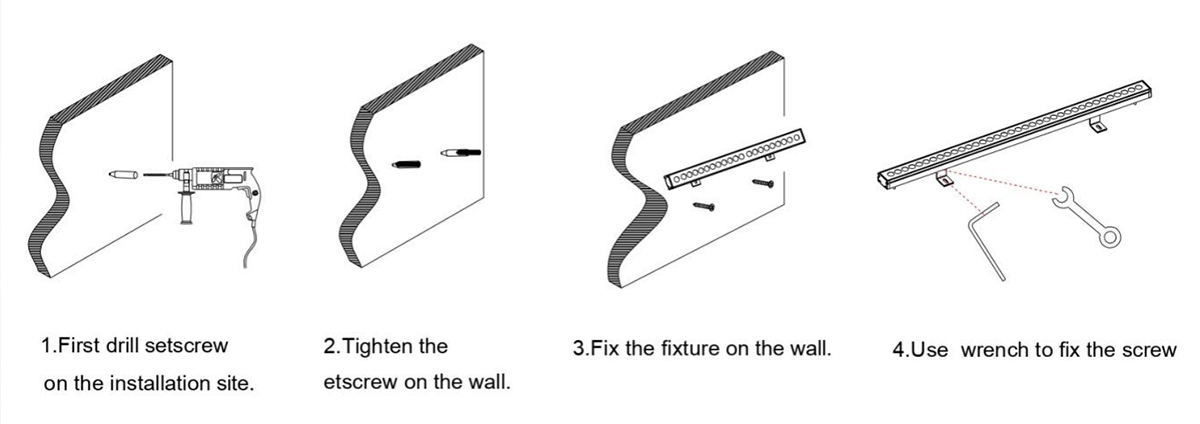

The following are the most straightforward steps to help you install the proper LED wall washer lighting for your applications. You can also see the above image for more clarity!
STEP 1: Firstly, drill the set screw properly on the selected site for installation.
STEP 2: The second step includes tightening of the set screw on the wall.
STEP 3: Now, fix the fixture on the wall.
STEP 4: Fix the screw by using the wrench tool.
3. Connection Of Wall Washer Light
Now, please have a look at the connection of Wall Washer Lights:
3.1) LED wall washer connection diagram (3000K DC24V 36W)
The power supply can be feasibly connected to up to 7 lights in this wall washer connection. It is usually placed in the middle of these four lights.
All the connected lights can be adjusted flexibly per lights of different powers. Usually, you can see that the power of the load light is 80% of the total power supply. Besides, the maximum connection can not be extended by 90%.
3.2) LED wall washer connection diagram (3000K AC110/220V 24W)
The power cord can be located in the center or at both ends of connected lights in this connection. However, the power cord size calculation depends on the installed lights' current and wiring distance.
3.3) LED wall washer connection diagram (RGB/RGBW DC24V 24W DMX512)
A master controller can be utilized here in both online and offline environments. This wall washer connection includes the sub-controlled port, which can connect up to 30 pieces of RGB/RGBW 6 pixels/meter lights. You should also know that the CAT5E network cable effectively connects a master control to a sub-control and a sub-control to a sub-control. However, both ends here are 568A/568B standard with the longest 100 meters.
You can use the CAT5E network cable to extend from sub-control to light. Connect it using a maximum of 50 meters in length. If the distance is long, you can place a DMX signal amplifier in front of the first light. Usually, the power supply can be effectively connected to 12 lights, and power should be located in the middle of these lights. Moreover, a signal cable must connect the connection between the two power supply sets.
3.4) LED wall washer connection diagram (RGB/RGBW AC110-220V 24W DMX512)
In this connection, the master controller can also be used online and offline. Besides, the sub-controller port can be connected to up to 30 pcs RGB/RGBW of 6 pixels/meter lights. Like the above wall washer lighting, this light master control to sub-control sub-control to sub-control is connected by CAT5E network cable. In this case, both ends are 568A/568B standard with the longest 100 meters.
It also uses the CAT5E network cable to extend from the sub-control to the light. It can connect effectively to the light of a maximum 50-meter length, and a DMX signal amplifier can be implemented in case of long distances. One thing that differentiates it is that a maximum of 30 lights can be connected to the power supply, where the power cord can be located in the core of 30 lights at both ends.
4. Application Of Wall Washer Light
As multipurpose lighting equipment, wall washer lights can uniformly illuminate any huge vertical surface. Thus, they have distinct appearance and appearance, making them a good fit for many applications. Below are some significant ones:
4.1) ARCHITECTURAL ACCENTUATION
The most common use of wall wash lighting is highlighting architectural elements, such as emphasizing texture and style. They also provide a great depth and visual appeal to the façade of a historic or modern property.
4.2) OUTDOOR LANDSCAPES
The outdoors can also be elevated with wall washer lights. It includes elements like external walls, fences, and landscape items. With this application, people can improve the appearance of gardens, paths, and architectural buildings. It results in a pleasant outside setting.
4.3) ART GALLERIES AND MUSEUMS
Another significant utilization of these lights is effectively showcasing artwork in art galleries and museums. In this application, precise lighting is essential. Therefore, the wall washer lights are helpful for consistent and adjustable lighting. It ensures that paintings, sculptures, and exhibitions are exhibited in the best light, free of shadows and glare.
4.4) BRIDGE LIGHT
The application of wall washers in bridge lighting can not only enhance the beauty of the bridge, but also provide safety lighting and emphasize the importance of the bridge. At the same time, by choosing appropriate lighting colors and methods, various lighting effects can be created to enhance the attractiveness of the city's night scene.
5. In The End
Ultimately, knowing how to connect and install wall washer lights is critical for improving the beauty and functioning of any place. The detailed procedure entails careful consideration of electrical wiring, fixture placement, and appropriate angles to produce the intended lighting appearance. Wall washer lights that are appropriately connected provide a smooth integration into the entire design, transforming plain walls into visually appealing features.
Furthermore, the installation procedure necessitates attention to detail and adherence to safety regulations. This article will be a suitable resource for people who want to illuminate their environments with wall washer lights. They promote a harmonious balance of form and function in interior and exterior wall wash lighting design.
