Choosing the Best IK Rating for Facade, Bridge, and Landscape Lighting

Choosing the Best IK Rating for Facade, Bridge, and Landscape Lighting

When selecting luminaires for facade, bridge, and landscape lighting projects, in addition to considering lumens, color temperature, and protection rating (IP rating), one crucial parameter is often overlooked: the mechanical protection rating, or IK rating.

The IK rating represents a fixture’s ability to resist external mechanical impacts. For installations in outdoor areas with high pedestrian traffic or locations prone to intentional damage (such as graffiti or thrown objects), choosing the appropriate IK rating is essential to ensure long-term reliability of the lighting system and protect your investment.

This article will explore IK ratings in depth and provide guidance on the best choices for facade, bridge, and landscape lighting applications.

1. Understanding IK Ratings in Outdoor Lighting

1.1）What Is an IK Rating?

An IK rating is an international standard that measures how well a lighting fixture can withstand mechanical impact. Defined under IEC 62262, it represents the level of protection the fixture’s housing provides against external physical forces. The rating is expressed on a scale from IK00 to IK10, with each level corresponding to a specific impact energy measured in joules. A higher IK value indicates stronger resistance, meaning the fixture can endure greater external force without cracking, deforming, or exposing internal components.

1.2）How to Differentiate IK Ratings?

Treat the IK value as a quantified impact energy (per IEC 62262), not a vague label: functionally, lower levels cover light incidental contact, mid-range (IK06–IK08) covers routine maintenance and heavier accidental strikes, and the top levels (IK09–IK10) resist deliberate or high-force impacts. When you compare products, don’t just read the IK number—inspect the IEC 62262 test report (applied joules, exact test points struck, specimen material/thickness, and mounting condition) and confirm any post-impact functional and IP retests, because identical IK numbers can be achieved by very different material and structural approaches with different real-world performance.

1.3）How Are IK Ratings Tested and Measured?

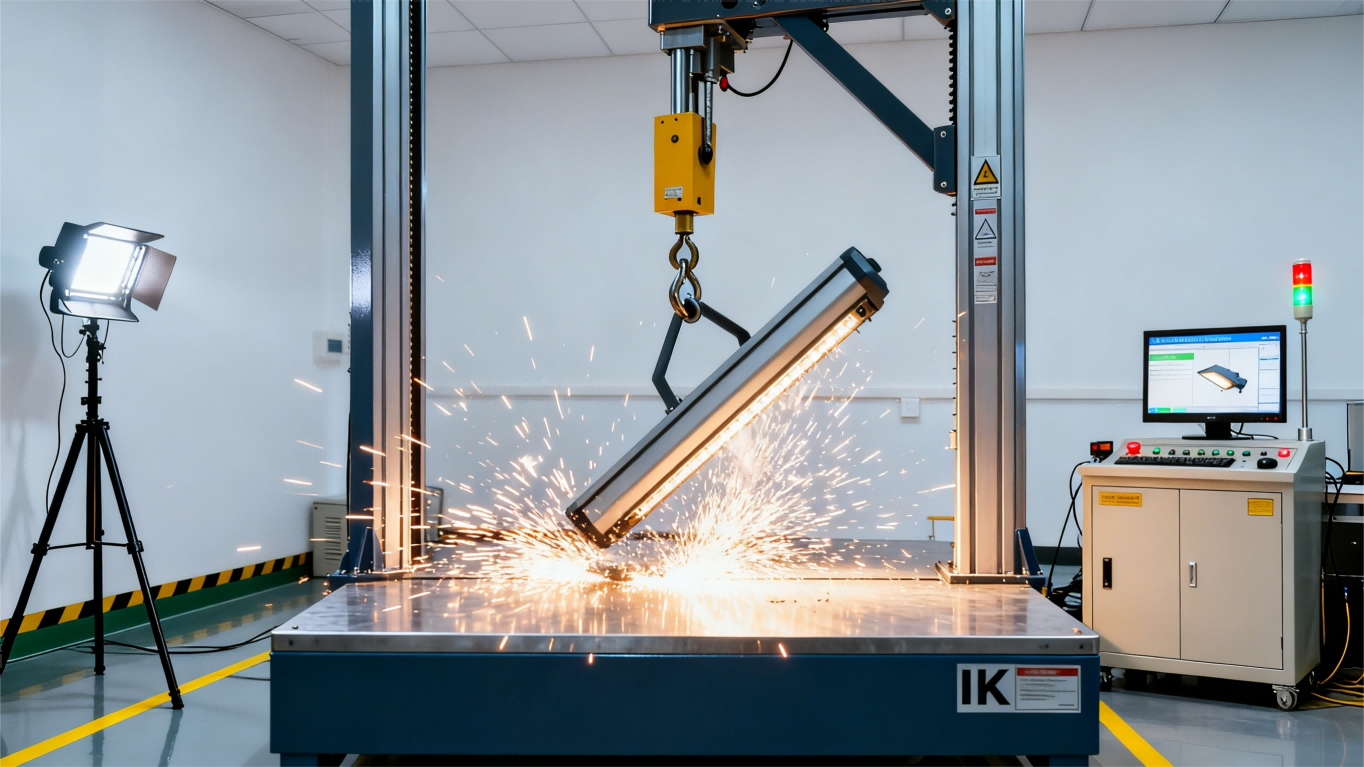

IK ratings are determined through a standardized testing procedure defined in IEC 62262, which evaluates how much mechanical impact a lighting fixture can withstand without structural failure. During the test, a calibrated pendulum or drop-weight device delivers a specific amount of impact energy—measured in joules—directly onto the fixture’s housing. Each IK level corresponds to an exact energy value, ensuring that the classification is both objective and repeatable across different laboratories. The fixture must maintain its structural integrity, meaning no cracks, openings, or damage that could expose internal components or compromise waterproof performance. This process simulates real-world forces such as accidental collisions, vandalism attempts, or impacts from tools and maintenance activities, allowing manufacturers and specifiers to accurately assess a product’s mechanical resilience.

2. Why IK Rating Matters for Outdoor Lighting

Before diving into specific applications, it is important to understand why the IK rating plays a critical role in outdoor lighting design. Unlike indoor fixtures, outdoor luminaires face constant exposure to mechanical stress, whether from pedestrian traffic, maintenance activities, or unexpected environmental forces such as falling debris. A fixture’s aesthetic appeal and lighting performance can be completely compromised if it lacks adequate impact resistance. By carefully selecting the appropriate IK rating, designers and engineers can ensure long-term reliability, reduce maintenance costs, and maintain safety, while also preserving the intended visual effects of facade, bridge, and landscape lighting installations. The following sections explore how these principles apply to different outdoor lighting scenarios.

2.1）The Hidden Impact Risks in Facade Lighting

Facade fixtures may seem protected when mounted on walls, but they still face frequent light-to-moderate mechanical stress. Routine building maintenance—such as window cleaning poles, suspended platforms, and tools—often bumps into the fixtures, gradually loosening lenses or shifting beam alignment. Lower-level areas face even more frequent contact from pedestrians, cleaning equipment, and temporary event setups. Environmental elements like wind-driven debris and micro-movement of facade materials also add long-term pressure. While impacts are rarely severe, they occur often and unpredictably, making moderate IK protection essential for stable facade illumination.

2.2）Why Bridge Lighting Faces Much Stronger Physical Stress

Bridge lighting operates in a tougher physical environment than facade systems. Fixtures installed along railings or pedestrian paths are regularly hit by bicycles, scooters, backpacks, and maintenance tools. Heavy vehicle vibration continuously transfers force through the bridge structure, weakening poorly protected housings over time. Open bridge designs also expose fixtures to wind-carried debris or falling objects from upper levels. Because damaged or misaligned lights can affect pedestrian visibility and traffic safety, bridge installations typically require higher IK ratings to endure constant vibration, contact, and environmental impact.

2.3）Ground-Level Fixtures: The Most Impact-Exposed Lighting Category

Ground-level lighting—such as in-ground uplights, pathway markers, and low-mounted landscape fixtures—experiences the most intense mechanical stress. Pedestrians, children, cyclists, trolleys, lawn equipment, and even cars can apply strong and repeated force on these fixtures. Environmental pressure adds to the challenge: shifting soil, moisture buildup, roots, and gravel can all push against the housing or strike the lens. Because these fixtures must survive high-frequency physical impact and load-bearing conditions, they often require reinforced structures and IK10 protection to ensure long-term reliability in parks, plazas, and public spaces.

3. How to Select the Right IK Rating for Different Outdoor Lighting Applications

Selecting the appropriate IK rating begins with a clear understanding of the installation context and the types of mechanical stress the fixture will face. Rather than defaulting to the highest possible rating, a pragmatic approach matches IK (and IP) levels to quantified risk factors such as mounting height, public accessibility, maintenance routines, and environmental exposure. The following subsections provide actionable guidance for common outdoor lighting applications and include specification tips you can use in tender documents.

3.1）Facade Lighting: Practical Rules for Selection

For facade installations, evaluate mounting height and proximity to pedestrian access first. High-mounted fixtures (commonly above 3–4 meters) present low collision risk and usually perform well with IK06–IK07 when paired with appropriate IP protection for weather. Low-mounted or reachable fixtures, including ground-level up-lights and soffit-mounted units near walkways, require IK08 or higher to resist accidental knocks, cleaning-tool strikes, and occasional vandalism. When specifying, call out both IK and IP values and require test reports: for example, “Facade wall washers to be rated IP66, IK08, tested to IEC 60529 and IEC 62262; submit certified test reports with delivery.” Where architectural appearance is critical, consider recessed mounting, protective guards, or sacrificial covers during construction to avoid bulky housings that compromise aesthetics.

3.2）Bridge & Handrail Lighting: Safety-First Specification

Bridge environments combine mechanical exposure with safety imperatives. Fixtures integrated into handrails, parapets, or pedestrian pathways should typically be specified at IK08–IK10, with IK10 as the baseline for fixtures within direct reach. For bridge soffits or high-mounted floodlights where human contact is unlikely, IK06–IK08 may suffice provided vibration and debris exposure are addressed. In specifications, include requirements for tamper-proof fixings and vibration-resistant mounting systems, and require suppliers to provide IK test certificates and mechanical fatigue data. Example clause: “Handrail-integrated luminaires: IK10, IP66, tamper-proof fasteners, and mounting system rated for vibration class X.”

3.3）Landscape & Ground-Level Fixtures: Combine High IK with High IP

Ground-level and recessed fixtures face the greatest frequency of direct impact and environmental exposure. Specify a combined protection of IK09–IK10 with IP67–IP68 for in-ground uplights and flush-mounted units. In addition to IK/IP values, define load-bearing capacity, front-glass/specimen thickness, and slip-resistance class for pedestrian areas. Example: “In-ground uplights to be IK10, IP68, front glass minimum 12 mm tempered, load class to AS/EN XXX for pedestrian/vehicle rating, stainless-steel trim, and replaceable gasket system.” Require corrosion resistance tests for coastal or chemically aggressive soils, and specify maintenance-friendly features such as replaceable lenses or accessible gaskets.

3.4）High-Risk Public Spaces & Special Cases

For plazas, stadium perimeters, transit hubs, and other high-vandalism zones, default to IK10 where fixtures are reachable. Complement IK with anti-tamper hardware, concealed fixings, or protective cages where appropriate. For temporary protection during construction or high-risk events, plan sacrificial covers or removable guards. Conversely, for high-elevation architectural accents or areas with restricted access, a lower IK combined with higher IP and robust mounting may be more cost-effective. Always quantify the expected exposure (pedestrian passes/day, maintenance cycles/year, known vandalism incidents) and justify any deviation from baseline recommendations in the project risk register.

3.5）Practical Specification Checklist (Actionable Items)

When preparing specifications or evaluating product proposals, ensure each entry includes: the required IK and IP ratings with referenced standards (IEC 62262 / IEC 60529), accredited test reports, material corrosion resistance, front-cover thickness or load-rating where applicable, tamper-resistant fixings, warranty and lifecycle expectations, and recommended maintenance intervals. This checklist converts design intent into measurable procurement criteria and reduces ambiguity during tender evaluation.

4. Technical deep dive — How IK rating is achieved in product design (materials, structure, manufacturing)

4.1）IK = energy absorption + controlled failure path

An IK rating describes how a luminaire’s enclosure handles a given impact energy: either by absorbing and dissipating that energy without transmitting it to internal components, or by being sufficiently rigid so that deformation does not produce critical failures. In practice manufacturers follow two principal strategies:

        (1) absorption — use ductile or elastomeric elements (thick UV-stabilized PC, elastomeric gaskets, internal ribs) that deform and dissipate energy;

        (2) strength — use rigid, high-strength materials (die-cast aluminum, stainless steel, thick tempered glass) and a stiff support frame that carry the load.

Each approach has trade-offs (aging/UV embrittlement for polymers; weight, cost, and thermal impact for metals) that must be addressed in the overall design.

4.2）Key materials and structural decisions that change with IK level

As target IK increases you will typically see measurable changes in: front-cover material & thickness (e.g., PC vs. tempered glass, added reinforcement rings), internal support geometry (ribs, bosses, load paths that move force away from thin edges), fastening strategy (metal inserts, deeper bosses, distributed screw patterns), and sealing design (wider compression faces, dual-seal arrangements). High-IK products also treat mounting hardware and brackets as part of the “fixture” — weak brackets defeat a strong housing — so installation-state testing is required. Note also the thermal trade: thicker or more reinforced housings may reduce heat transfer and require separate heatsink design.

4.3）Manufacturing, testing and acceptance implications

Achieving a certified IK level requires controlled materials, tighter machining tolerances, traceable material batches, and documented assembly procedures. For procurement this means requesting not only the IK number but also the test report details (laboratory accreditation, test energy, impact points, specimen description, and post-impact IP/functional retest). For high-risk projects insist on compound tests (accelerated aging or salt-fog → then impact → then IP retest) to verify long-term performance rather than a single fresh-part impact result.

5. Consider Maintenance and Lifecycle Costs

When specifying outdoor lighting, selecting the appropriate IK rating is not only about preventing immediate physical damage—it also has a significant impact on maintenance requirements, operational costs, and the fixture’s overall lifecycle. Fixtures with insufficient impact protection are prone to cracks, lens breakage, or misalignment, which can result in frequent repairs, replacement, and labor costs.

5.1）Reducing Maintenance Frequency

Higher IK-rated fixtures resist accidental impacts, vandalism, and repeated mechanical stress, meaning they require fewer inspections and repairs over time. For example, an in-ground uplight rated IK10 can withstand daily foot traffic and occasional vehicle pressure, eliminating the need for regular replacement of lenses or housings. This directly reduces both the downtime of the lighting system and the labor costs associated with routine maintenance.

5.2）Minimizing Lifecycle Costs

Choosing the correct IK rating at the design stage ensures a longer fixture lifespan. While higher IK-rated products may have a higher upfront cost, they prevent early failure and reduce total cost of ownership. Designers and procurement teams should calculate lifecycle costs by combining initial purchase price, installation labor, expected maintenance frequency, and replacement cycles. In many cases, investing in IK08–IK10 fixtures for high-risk applications like plazas, parks, or bridge handrails proves more economical over 10–15 years than repeatedly replacing lower-rated products.

5.3）Facilitating Safe and Efficient Maintenance

High-impact-rated fixtures also make maintenance safer and easier. Stronger housings are less likely to break during cleaning or repair activities, minimizing the risk of injury to personnel. Additionally, many high-IK luminaires feature modular designs, replaceable lenses, and accessible gaskets, which allow for quick and cost-effective servicing without compromising the fixture’s integrity or waterproofing.

5.4）Practical Recommendation

When specifying IK ratings, always evaluate the expected mechanical stress, environmental conditions, and accessibility, then balance these factors against projected maintenance and lifecycle costs. Incorporate requirements for modular components, test reports, and warranty coverage in tender documents to ensure that long-term durability and cost-efficiency are built into the project from the start.

6. Short illustrative case studies

6.1）City plaza — upgrading in-ground uplights

A municipal plaza originally used IK06 in-ground uplights and suffered frequent lens cracks and water ingress. After replacing critical zones with IK10 / IP68 units featuring 12 mm tempered glass, stainless trim, and reinforced mounting seats, the annual replacement rate fell from ~15% to ~2% (illustrative). The higher upfront cost was recovered through reduced maintenance, fewer public closures, and lower lifecycle cost within 3–5 years.

6.2）Bridge handrail lighting — vibration and contact mitigation

A bridge experienced lamp misalignment and fastener loosening under vehicle vibration and maintenance traffic. Specifying handrail luminaires as IK10 with vibration-rated mounting, anti-loosen hardware, and fatigue testing reduced corrective maintenance calls by an estimated 80% in follow-up inspections. Requiring test evidence for both IK and vibration fatigue was key to supplier selection.

7. Conclusion

Choosing the right IK rating is a critical step in ensuring long-lasting, reliable outdoor lighting. By assessing installation height, accessibility, environmental exposure, and mechanical stress, designers and engineers can match IK and IP ratings to the actual risks each fixture will face. Properly specified luminaires reduce maintenance costs, enhance safety, and maintain visual quality across facades, bridges, and landscapes.

LNJAMI offers a full range of outdoor lighting fixtures engineered for high impact resistance, combining IK07–IK10 protection with robust IP ratings. From facade wall washers and linear bars to bridge handrail lights and in-ground landscape uplights, each luminaire is designed to withstand accidental contact, maintenance activity, pedestrian traffic, and environmental stress. With tempered-glass covers, reinforced housings, tamper-proof fixings, and accredited IK/IP certifications, LNJAMI solutions ensure long-term durability, safety, and reliable performance across diverse architectural and landscape applications.
